20L Double Layer Lab Reactor with High Borosilicate Glass & PTFE Valves 110V Constant Temperature Control Lab Glass Reactor Chemical Jacketed Reactor Vessel for Lab Reaction Distillation

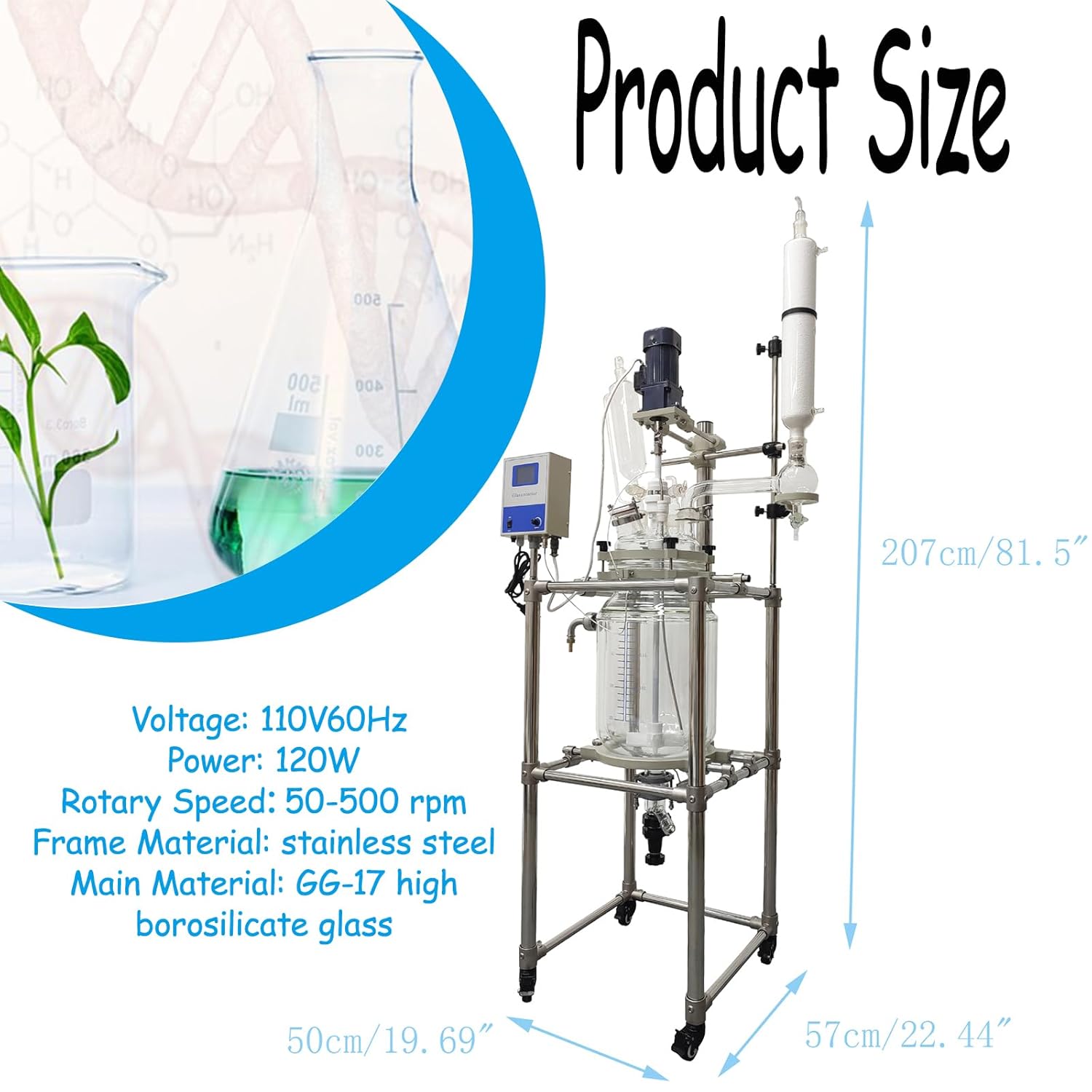

▼Introduction:This series jacketed glass reactor is according to customers’ actual requirements and new standards of jacketed glass reaction vessels.The series jacketed glass reactor is mainly used for the process of combination, reaction, separation, concentration, etc.▼Parameters:Voltage: 110V60HzPower: 120WRotary Speed: 50-500 rpm Frequency ControlFrame Material: stainless steelMain Material: GG-17 high borosilicate glass▼Main Components:PTFE stirring rod---1 SETPTFE discharging valve---1 SETRotating mixing and sealing systems---1 SETCondenser---1 SETConstant pressure funnel---1 SETStainless steel frame structure---1 SETController---1 SETMotor---1 SETDouble-layer glass reactor kettle---1SETItem Number: 220567

• Lab Grade Sealing System: The 20L glass reactor is equipped with PTFE sealing components with high vacuum to ensure leak-free operation and long service life
• High-quality Material: The main body of the double-deck reactor is made of 201 stainless steel frame with wheels and brakes for safety and convenience, and the stainless steel stirring bar is coated with PTFE for sustainability and non-pollution
• Safety Strengthened Glass Design: GG-17 high borosilicate glass has excellent chemical and physical properties and facilitates real-time observation and detection of reactions
• Intelligent Control System: The 110V double-layer glass reactor is equipped with 120W high-performance motor, adjustable speed from 50-500RPM, double digital display of temperature and speed, easy to operate
• Widely Application: The interlayer of this double-layer reactor can be infiltrated with freezing liquid, water and high temperature liquid to heat and cool the material, which is used for experiments, pilot tests and production of new material synthesis in chemical industry, fine chemical industry and biopharmaceutical industry
